The Bolinas Ridge offers the perfect blend of performance, value and fun. The Marin Bolinas Ridge range is perfect for those that are new to mountain biking or are looking for a low-hassle, low-cost bike to explore off-road.

The Marin Bolinas Ridge 2 is our upgraded version, stepping up the fun and the components. The Bolinas Ridge 2 gets an upgrade to Tektro Hydraulic disc brakes and features an SR Suntour suspension fork, reliable and grippy off-road tires and plenty of kick-ass Marin components. The Bolinas is ideal to break out onto the trails and push your own boundaries.

Depending on size, the Bolinas Ridge 2 comes with either smaller 27.5” (sizes XS to M) wheels or larger 29" (sizes M to XL) wheels to guarantee a perfect fit.

SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION

FRAME

Series 1 6061 Aluminum, 27.5”/29" Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes

FRONT SUSPENSION

SR Suntour XCM DS, 100mm Travel, Preload Adjustment, 46mm Offset

RIM

Marin, Double Wall Alloy

HUB REAR

Forged Alloy, Disc, 32H

HUB FRONT

Forged Alloy, Disc, 32H

SPOKES

Black Stainless Steel

TIRES

MTB, 27.5/29x2.25"

DERAILLEUR REAR

Shimano Essa, 8-Speed

SHIFT LEVER

Shimano Altus 1x8-Speed

CRANKSET

Alloy Crank, Steel Narrow/Wide Chainring, 32

BOTTOM BRACKET

Sealed Cartridge Bearings, Square Taper

CHAIN

KMC Z8

CASSETTE

Shimano 8-Speed, 11-45T

BRAKES FRONT

Tektro M280 Hydraulic Disc, 160mm Rotor

BRAKES REAR

Tektro M280 Hydraulic Disc, 160mm Rotor

BRAKE LEVERS

Tektro Hydraulic

HANDLEBAR

Marin 31.8 Riser, 12mm Rise, 780mm Width

STEM

Marin Alloy, 31.8mm, 45mm

GRIPS

Marin MTB, Closed End

HEADSET

FSA No.10-P

SEATPOST

Marin Alloy, 27.2mm

SADDLE

Marin MTB

PEDALS

Nylon Platform

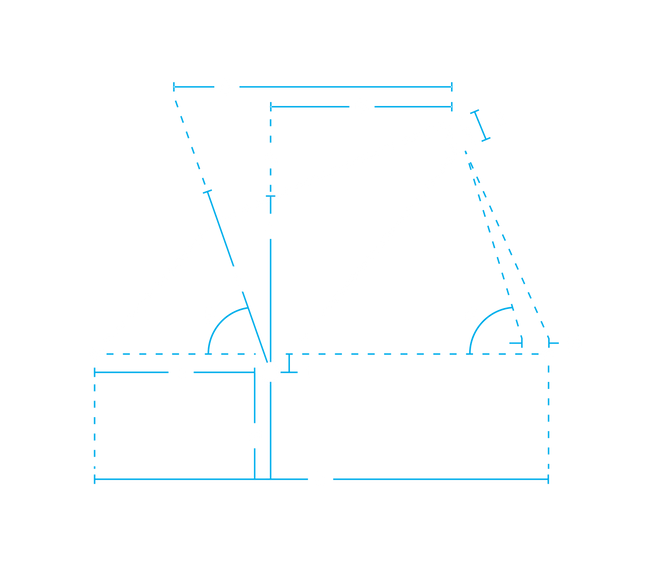

GEOMETRY

	XS	S	M	L	XL
ASTACK			622	626	631
BREACH			445	465	485
CHEADTUBE ANGLE			67°	67°	67°
DHEADTUBE LENGTH			110	115	120
ESEATTUBE LENGTH			431	481	520
FSEATTUBE ANGLE			74.5°	74.5°	74.5°
GTOPTUBE EFFECTIVE			617	639	660
HBB HEIGHT			311.5	311.5	311.5
IBB DROP			61	61	61
JCHAINSTAY			455	455	455
KWHEELBASE			1184	1206	1228
LSTANDOVER HEIGHT			699	726	760
MFORK OFFSET			46	46	46
NSEATPOST DIAMETER			27.2	27.2	27.2
OHANDLEBAR WIDTH			780	780	780
PSTEM LENGTH			45	45	45
QCRANK LENGTH			170	170	170
