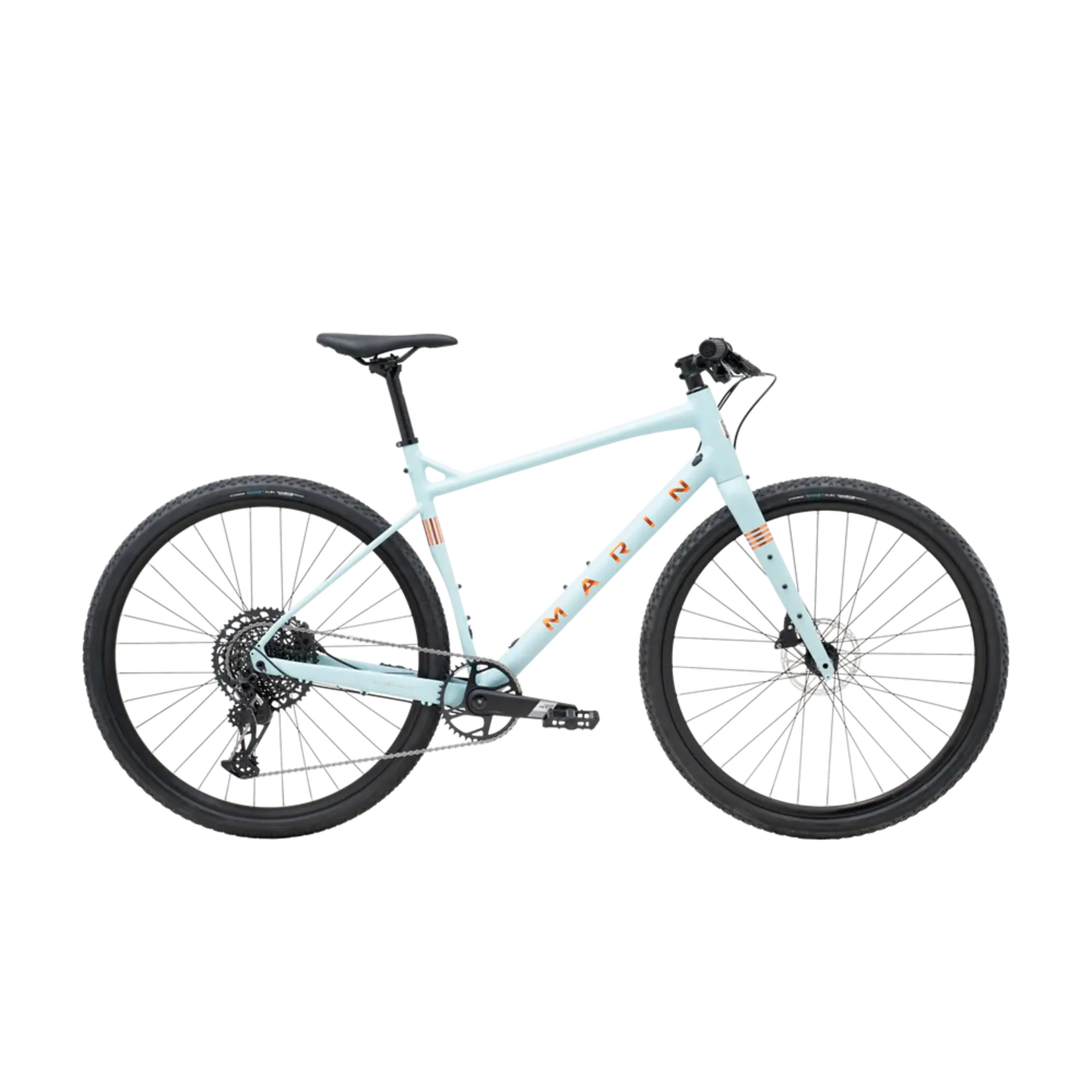

The DSX is a flat bar gravel bike based on our Gestalt X drop bar platform with Series 3 aluminum frames and carbon forks with large tire clearance, low standover, hydraulic disc brakes, and 1x drivetrains with the comfort and heads up positioning of a flat handlebar. Mountain bike sensibilities in a flat bar package capable of fast commutes, long Saturday adventures spanning pavement and light singletrack, and all-day gravel events.
SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION

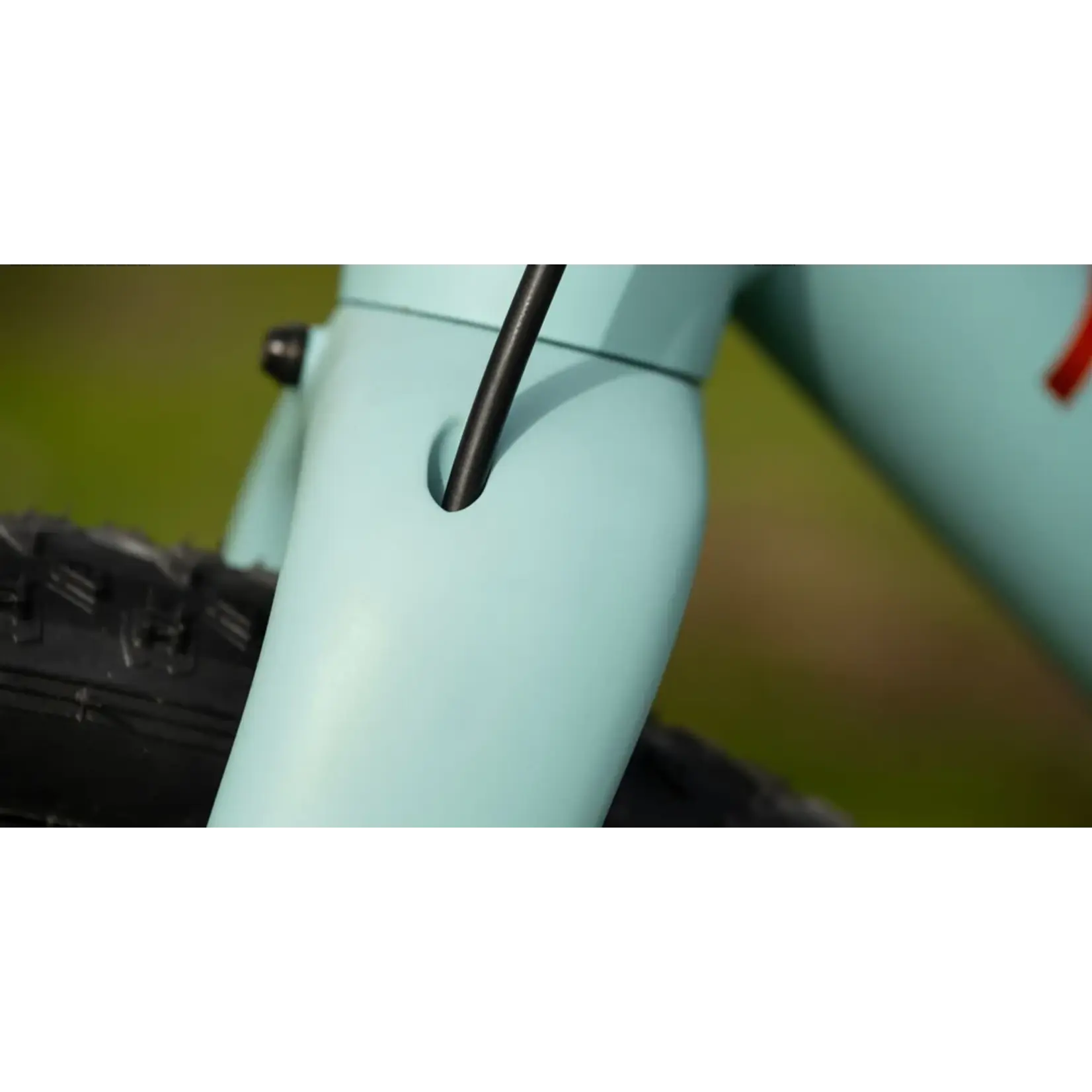

FORK
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
FRAME

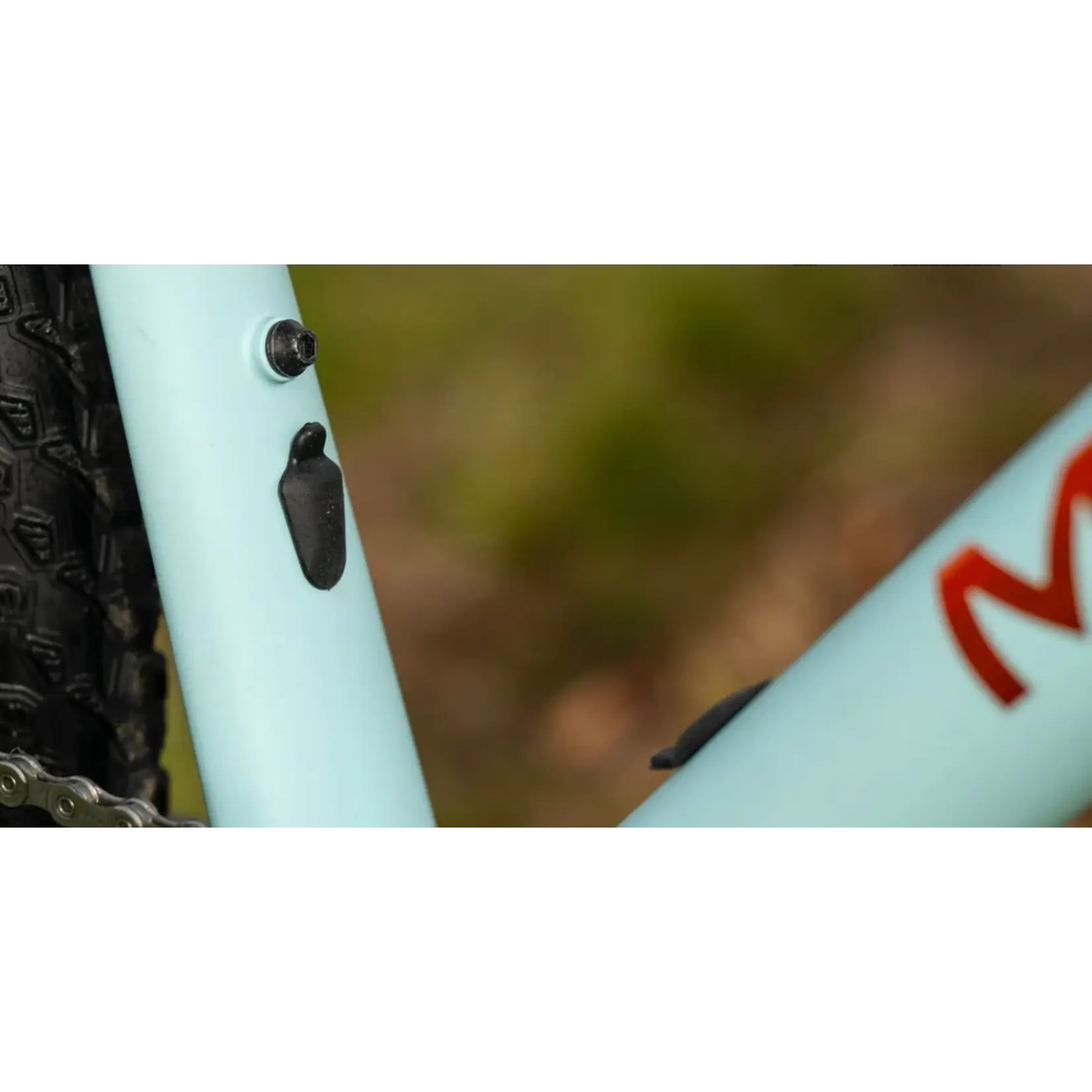

Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
RIM
Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
HUB REAR
Shimano Forged Aluminum, 142x12mm, Microspline, Disc, 32H
HUB FRONT
Forged Aluminum, 100x12mm, Disc, 32H
SPOKES
14g Black Stainless Steel
TIRES
Vee Tire Co. Rocket Man, 700Cx44mm
DERAILLEUR REAR
SRAM Apex 1, 12-Speed
SHIFT LEVER
SRAM NX 12-Speed
CRANKSET
SRAM Apex 1, 40T
BOTTOM BRACKET
SRAM DUB BSA
CHAIN
SRAM NX Eagle
CASSETTE
SRAM CS-XG-1275, 10-52T

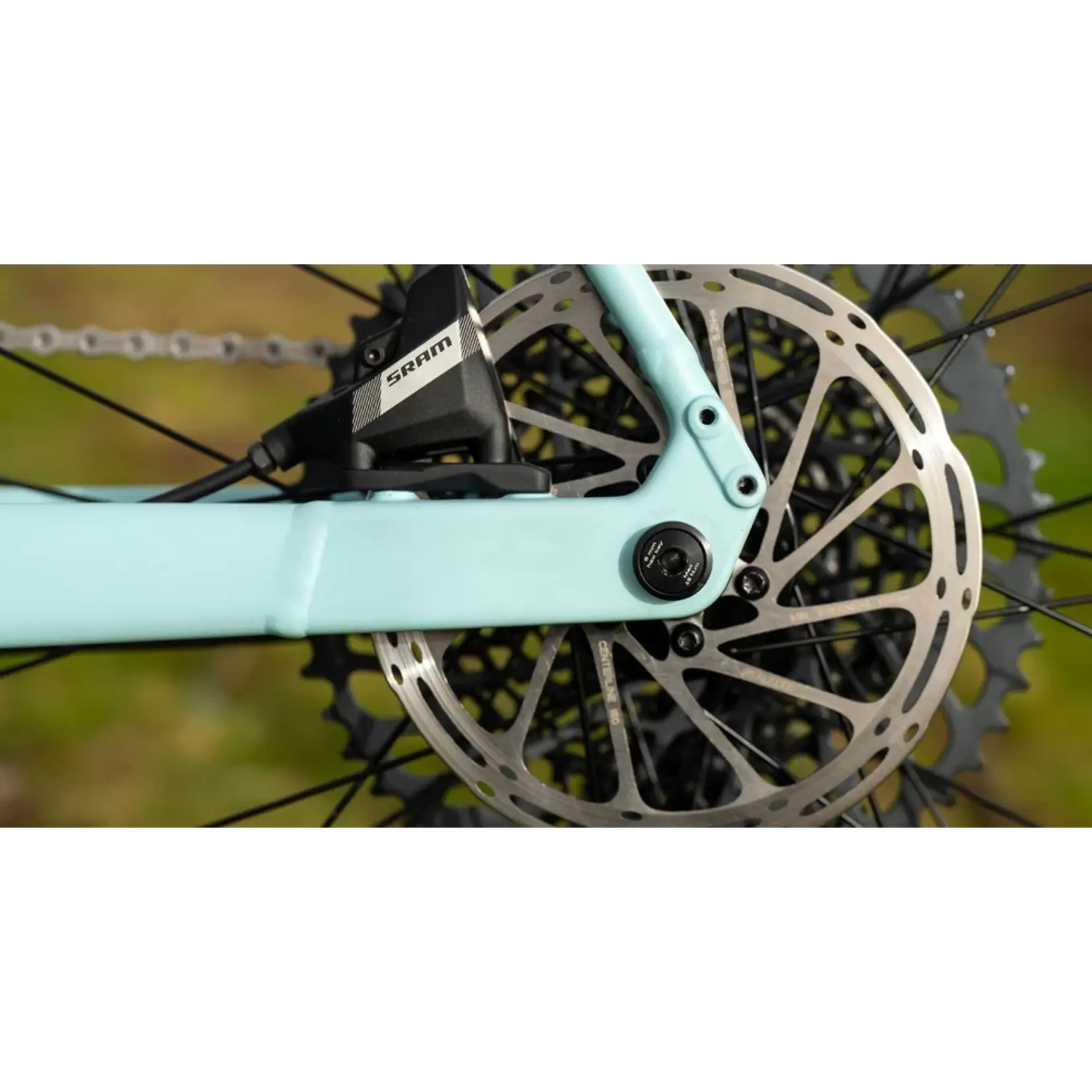

BRAKES FRONT
SRAM DB-S300 Flat Mount Hydraulic Disc, 160mm Rotor
BRAKES REAR
SRAM DB-S300 Flat Mount Hydraulic Disc, 160mm Rotor
BRAKE LEVERS
SRAM Hydraulic
HANDLEBAR
Marin MiniRiser
STEM
Marin 3D Forged Alloy
GRIPS
Marin MTB
HEADSET
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
SEATPOST
Marin Alloy
SADDLE
Marin DSX
PEDALS
Commute Platform
EXTRAS
Bolt-On Thru-Axles F and R
