  • Marin Marin Rift Zone 1 Sram
  • Marin Marin Rift Zone 1 Sram

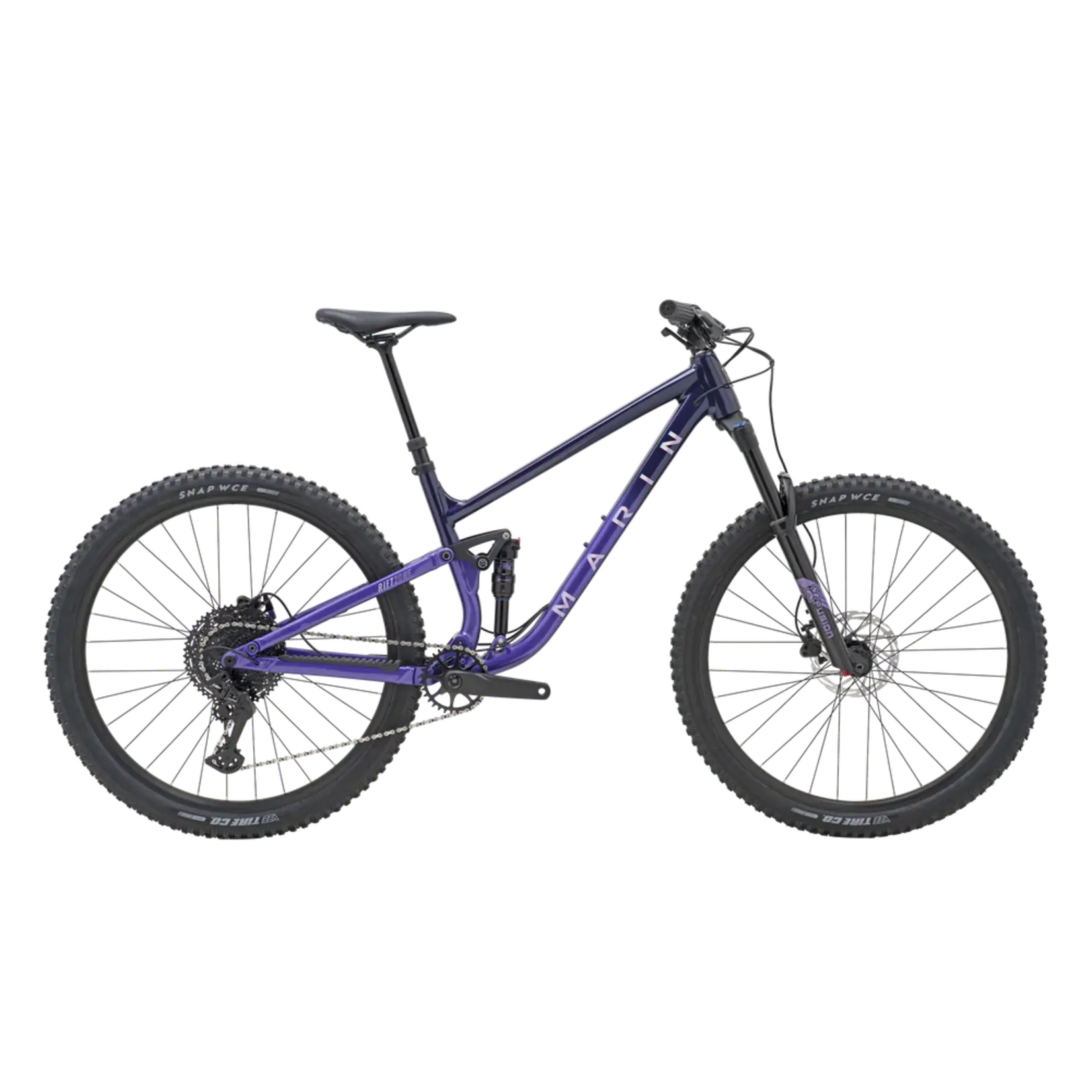

Marin Rift Zone 1 Sram

C$2,199.00
Excl. tax

The rating of this product is 0 out of 5

 (0)
In stock (1)
swap-horizontal Add to compare

The Marin Rift Zone 1 is your gateway to the Rifty family, made to push the limits of your riding but not your bank balance. It's built with super reliable X-Fusion suspension, an X-Fusion Manic dropper post, grippy Vee Crown Gem tires, plenty of Shimano parts and a hand-picked selection of our favorite Marin components.




SPECIFICATIONS

SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION

FRAME

Series 3 6061 Aluminum, 27.5 or 29" Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

FRONT SUSPENSION

X-Fusion Slide (29) or Sweep(27.5) Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset

REAR SUSPENSION

X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom

RIM

Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

HUB REAR

Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body

HUB FRONT

Shimano HF-MT400B, 110x15mm, Centerlock

SPOKES

14g Black Stainless Steel

TIRES

Vee Tire Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless compatible

DERAILLEUR REAR

Shimano RD-U6000, 11-Speed GS

SHIFT LEVER

Shimano, SL-U6000-11R, 11-Speed

CRANKSET

Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, 170mm Crank Length, Boost Spacing

BOTTOM BRACKET

External Sealed Cartridge Bearing

CHAIN

Shimano LG-500 11-Speed

CASSETTE

Shimano CS-LG400-11, 11-Speed, 11-50T

BRAKES FRONT

Tektro HD-M280 Hydraulic Disc, 180mm Rotor

BRAKES REAR

Tektro HD-M280 Hydraulic Disc, 180mm Rotor

BRAKE LEVERS

Tektro HD-M280

HANDLEBAR

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM

Marin 3D Forged Alloy, 35mm

GRIPS

Marin MTN, Closed End

HEADSET

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST

X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm

SADDLE

Marin Speed Concept

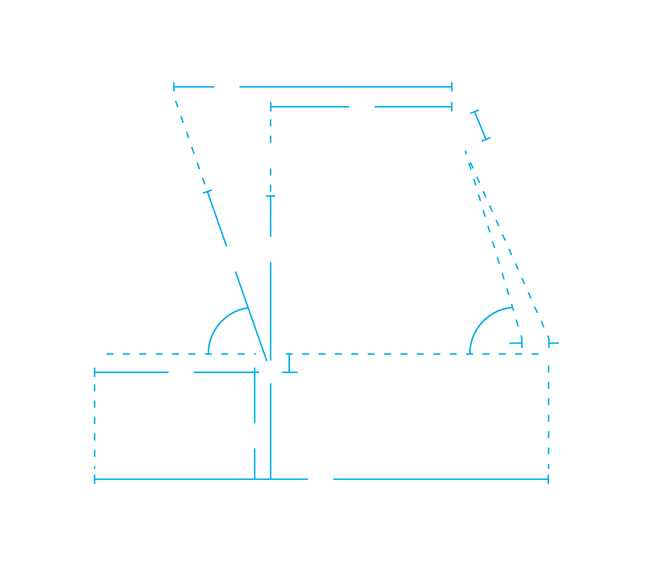

GEOMETRY
  XS S M L XL
ASTACK 569.1 600.7 605.2 637.3 641.8
BREACH 415 430 450 485 515
CHEADTUBE ANGLE 65.5° 65.5° 65.5° 65.5° 65.5°
DHEADTUBE LENGTH 115 120 125 125 130
ESEATTUBE LENGTH 330 390 400 425 430
FSEATTUBE ANGLE 77° 77° 77° 77° 77°
GTOPTUBE EFFECTIVE 552.6 568.7 589.7 632.1 663.2
HBB HEIGHT 339 339 339 343 343
IBB DROP 20 20 20 35 35
JCHAINSTAY 430 430 430 430 430
KWHEELBASE 1147.8 1164.8 1186.9 1234.4 1266.3
LSTANDOVER HEIGHT 661.7 677.8 687.8 701.7 700.5
MFORK OFFSET 44 44 44 44 44
NSEATPOST DIAMETER 30.9 30.9 30.9 30.9 30.9
OHANDLEBAR WIDTH 780 780 780 780 780
PSTEM LENGTH 35 35 35 35 35
QCRANK LENGTH 170 170 170 170 170
