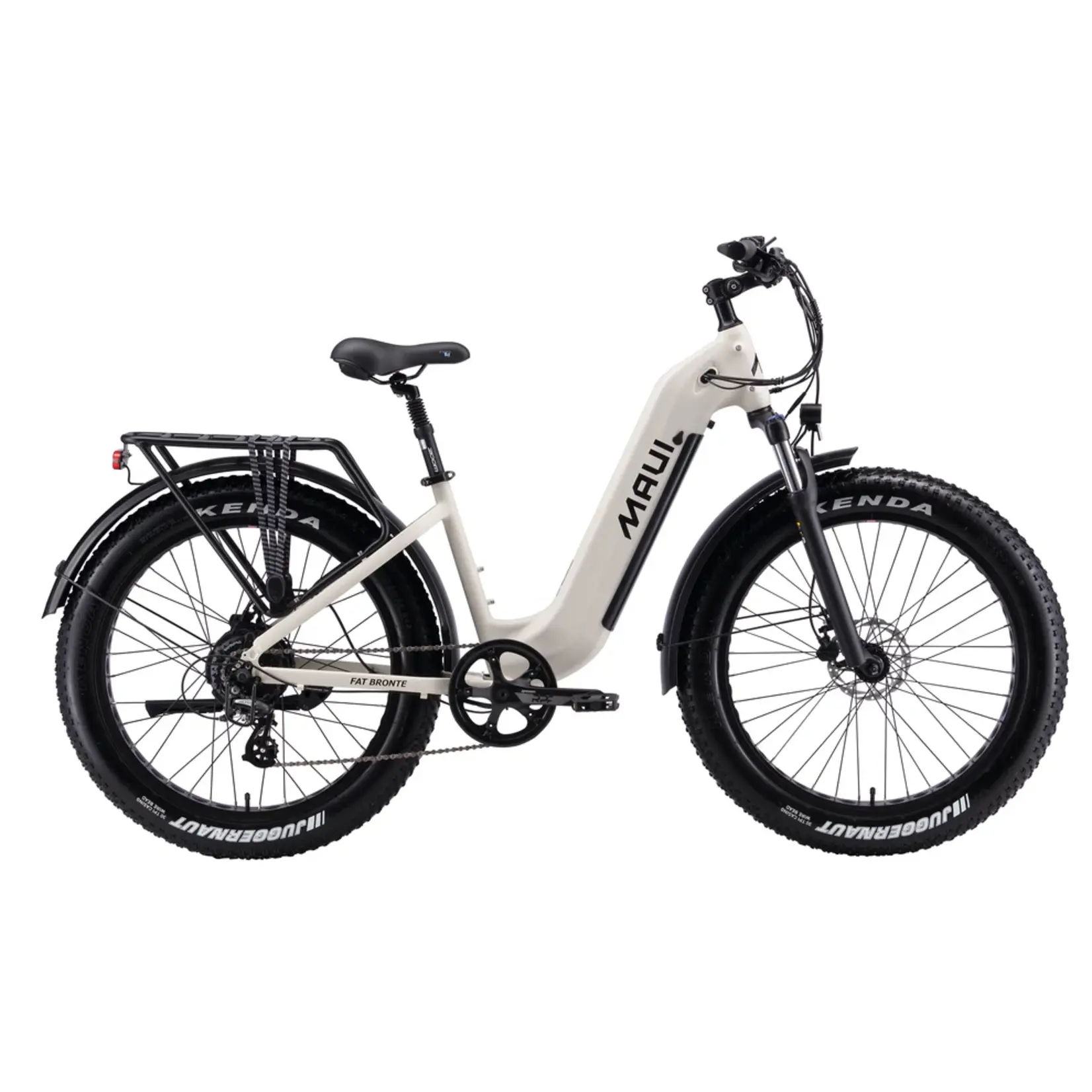

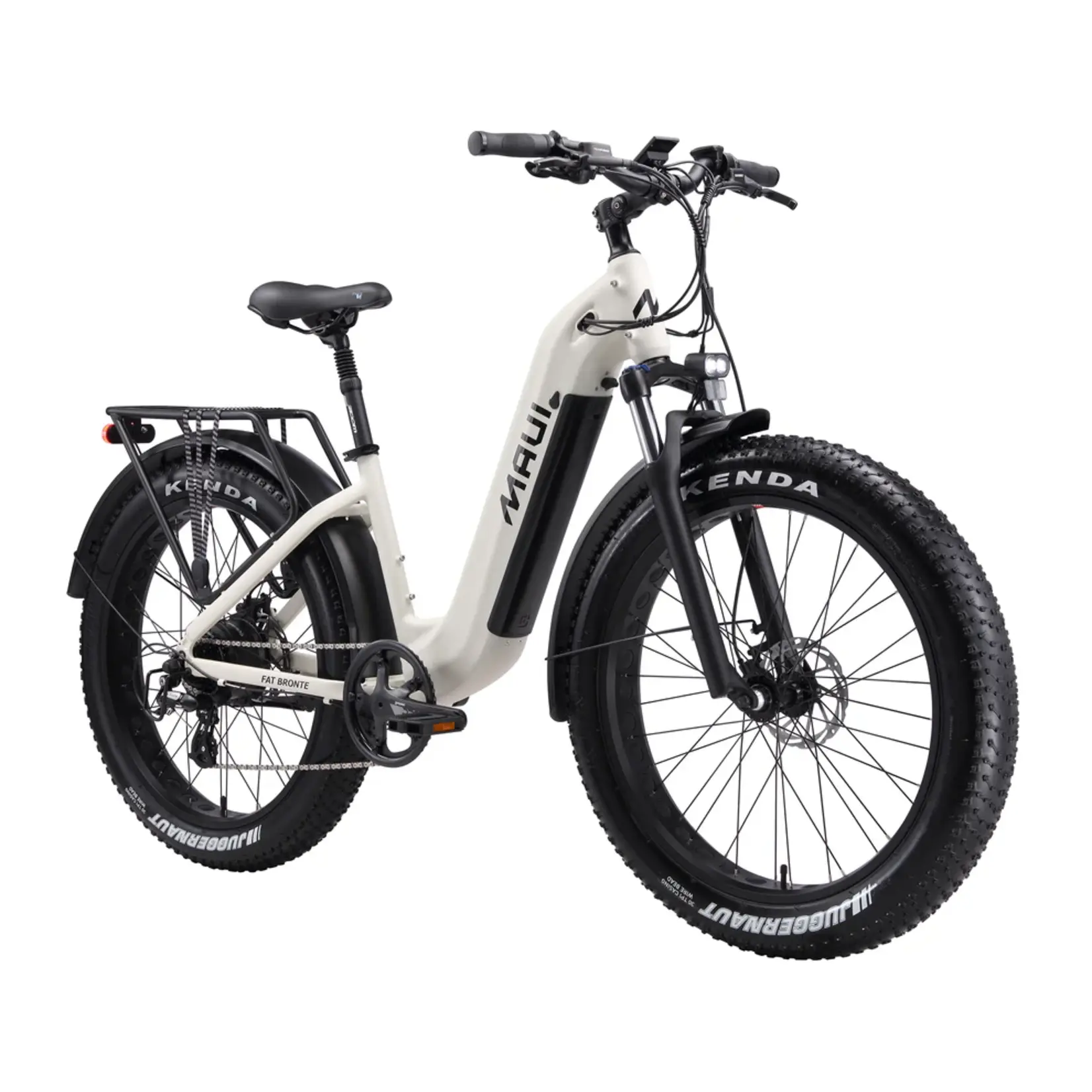

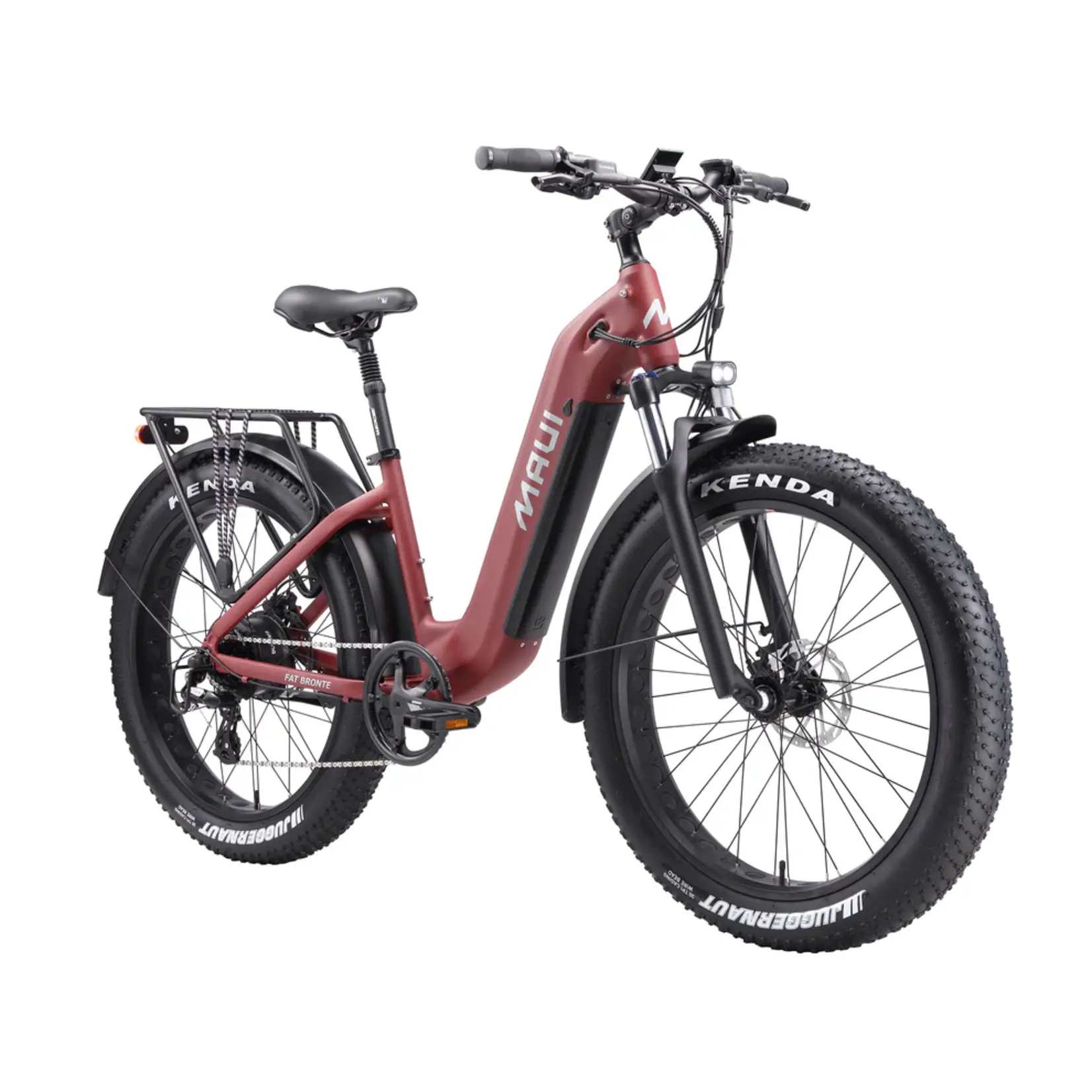

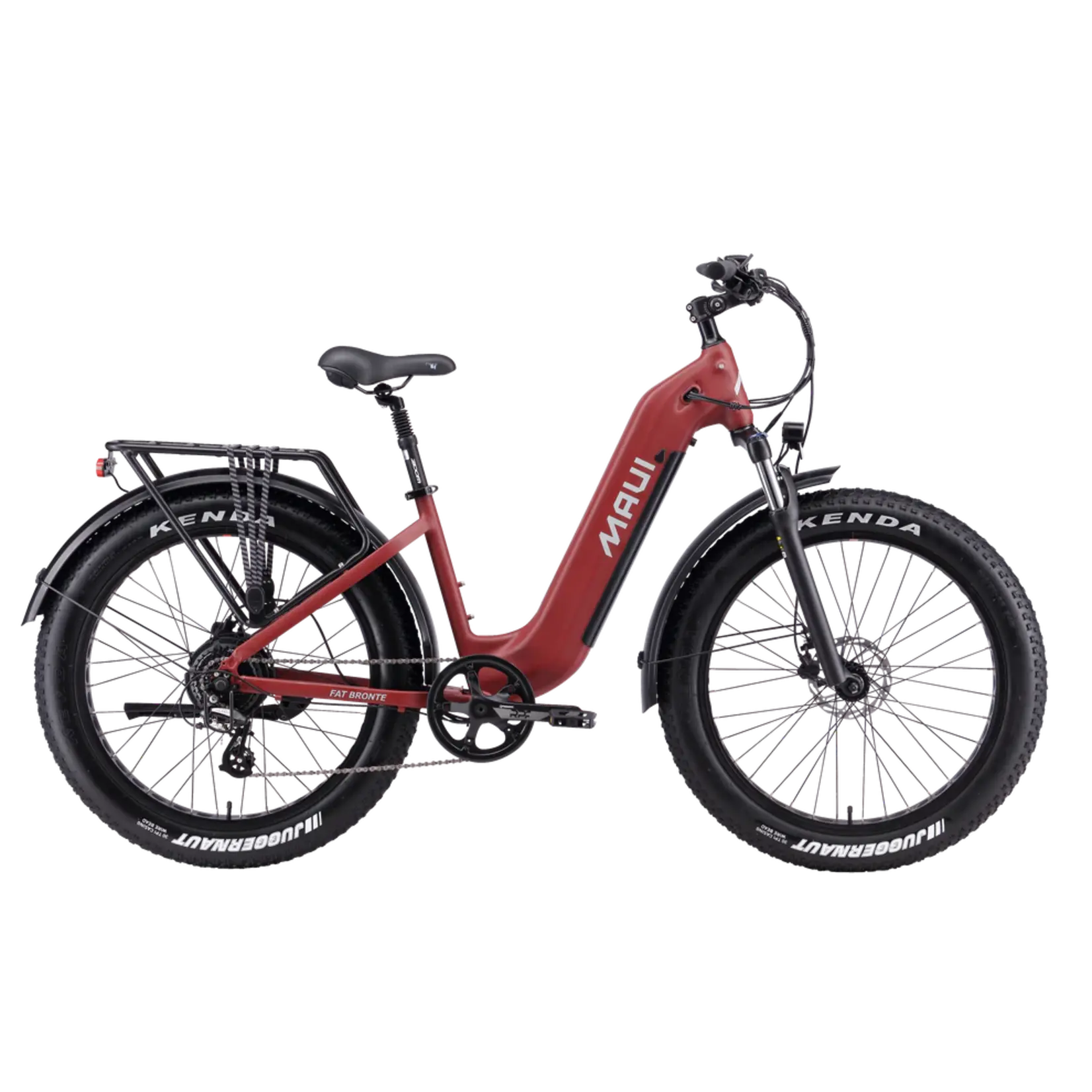

Maui Fat Bronte

Description

Experience our beloved frame design elevated with revolutionary torque sensor technology. The Fat Bronte reads your pedal pressure with intelligent precision, delivering motor assistance that adapts seamlessly to your riding demands. This trail-ready evolution of our bestselling design combines easy step-through accessibility with go-anywhere capability. The robust 500W Bafang motor paired with premium Samsung battery extends your adventures beyond limits, whether you're exploring rugged trails or cruising your favorite bike paths. Same legendary comfort. Unstoppable capability.

Frameset

FRAME

Alloy 26" step through frame with smooth welding. Integrated rear rack, fender mounts, Electronic Access Port. Removable battery with security lock.
FORK

Alloy suspension fork, with hydraulic lock
BIKE WEIGHT

29kg
WEIGHT CAPACITY

135kg

Drivetrain

SHIFTERS

SHIMANO 8-speed rapidfire
CRANK SET

PROWHEEL alloy, RPF-FD20SP, 42T*170mm
CHAIN

KMC Z7
REAR DERAILLEUR

SHIMANO Altus 8 speed
CASSETTE

SHIMANO 8-speed 12-32T

Components

HANDLEBAR

Alloy bird type bar
GRIPS

Non-slip, shock-absorbing with Alloy ring
STEM

Alloy stem
SEATPOST

Alloy 30.4mm with quick release (350mm)
BRAKE

TEKTRO, HD-E3520, hydraulic disc brake
ROTORS

160mm

Wheels

TIRES

KENDA 26*4.0″
RIMS

CDC alloy, 26’’4.0”13G36H

Electric Technology

MOTOR

BAFANG, RM G062.500.DC, 48V/500W
CONTROLLER

48V/500W/18A
BATTERY TYPE

SAMSUNG, 48V, 15AH, Lithium battery, removable with security lock
BATTERY CAPACITY

5000 mAh
RANGE

Up to 130km subject to ambient temperature, rider weight and ride style
POWER ASSIST

5 Levels of power assisted pedaling
THROTTLE

KAHUA, EA10 thumb throttle 36V
BATTERY CHARGER

48V Smart charger, LED status, with CE certificate

Accessories (included)

Display
Front & Rear LED Lights
Front & Rear Fenders
Rear Integrated Cargo Rack
Kickstand
Pedals
