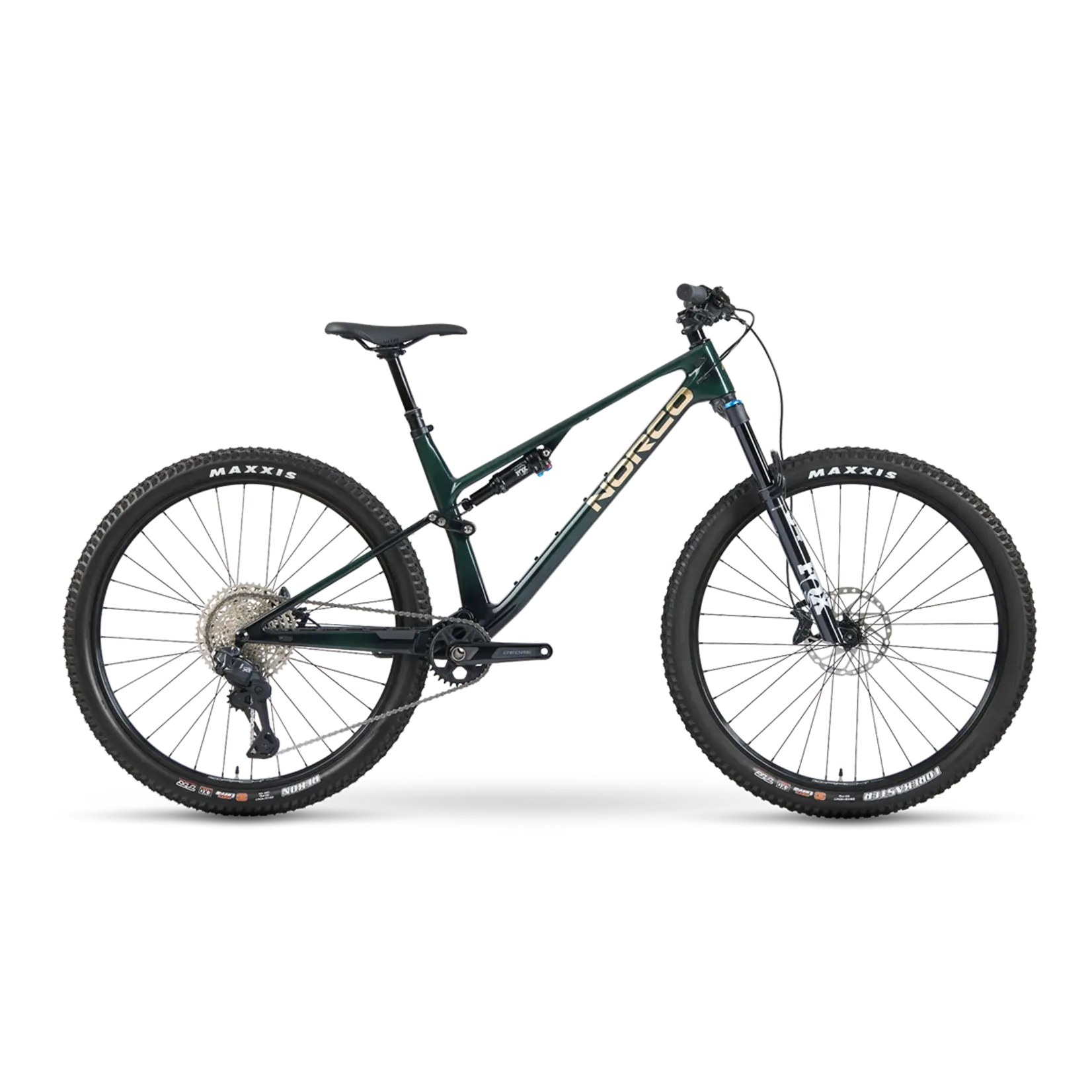

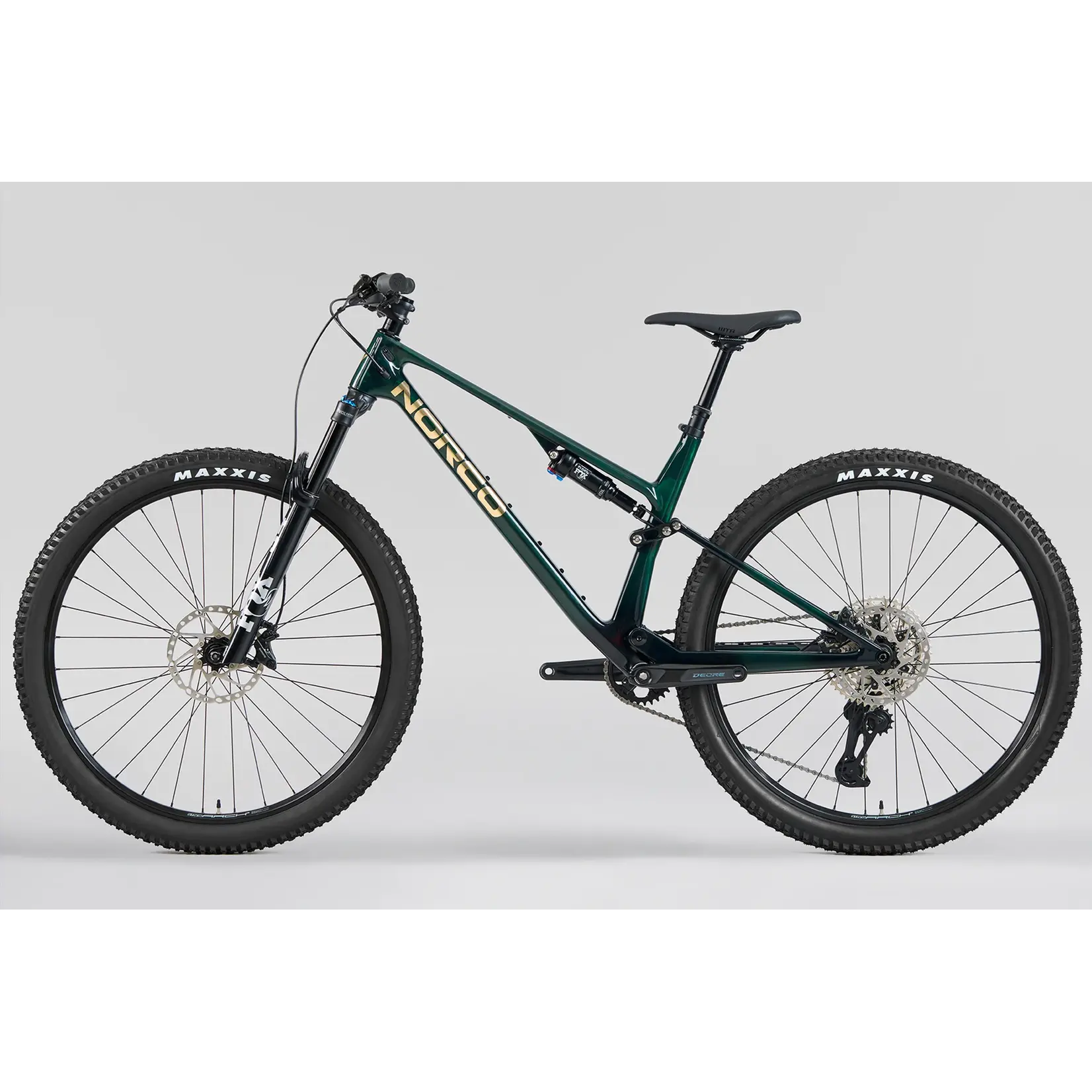

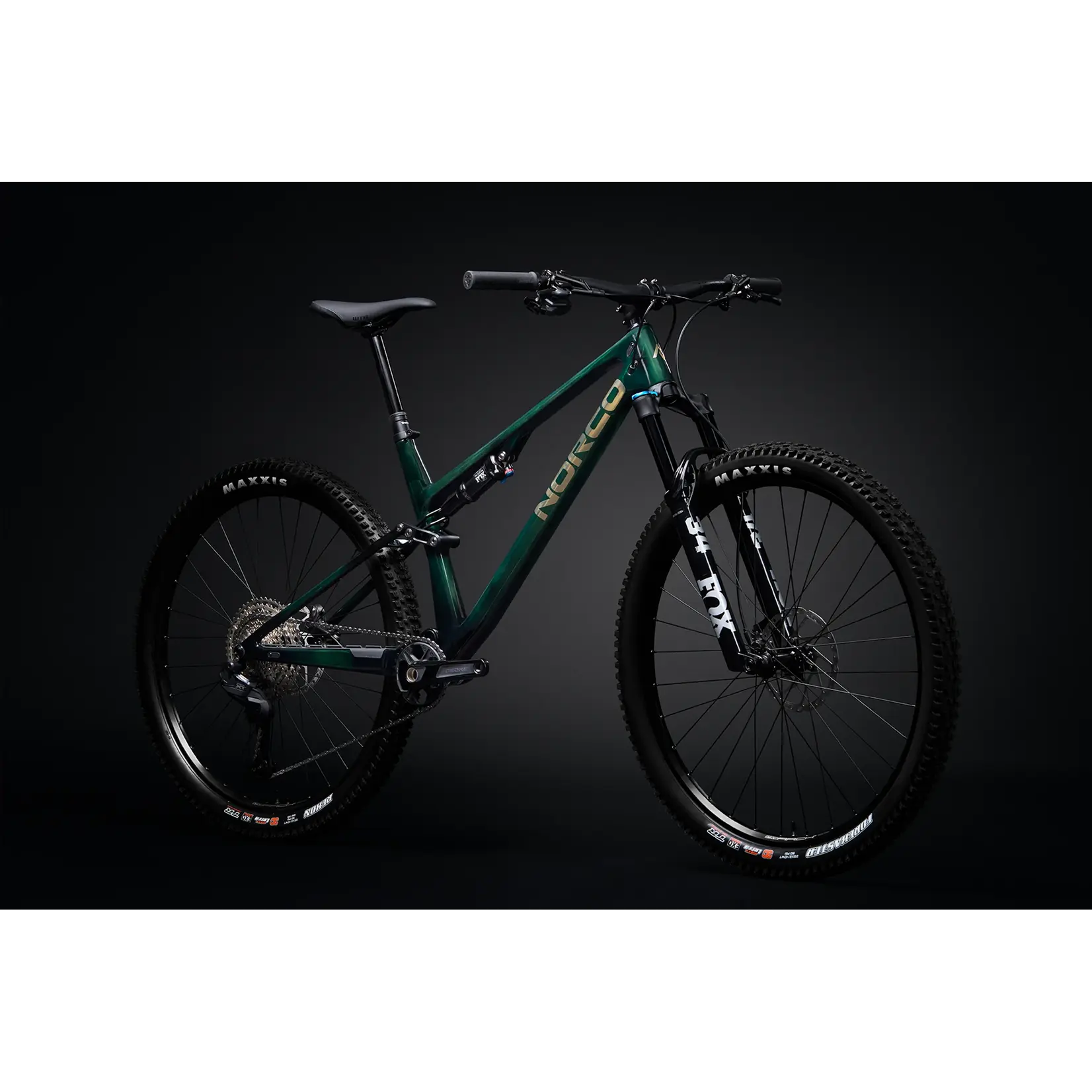

The Revolver C2 130 has 130 mm of travel on the front and 120mm on the rear. With a half-degree slacker head tube angle this bike will go double duty on trail rides as well as spicy XC race days. You'll be amazed at what a 130/120 travel bike can do. Unlock all the secret lines—if you love light, fast, and playful all-day adventures, this one is for you.
The Revolver C2 130 is the lightest and most capable full-suspension frame Norco has ever built. At the core of its efficiency is our advanced approach to the Flex-Pivot design, letting us get improved performance out of the lightweight inline shocks we’re spec'ing that would typically be reserved for heavier and larger volume air shocks. With modern, aggressive XC geometry, consistant weight distribution across sizes, and a carbon frame layup optimized per frame size for stiffness and compliance, it’s a strong foundation for driving up and charging down.
| FRAME | Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ |

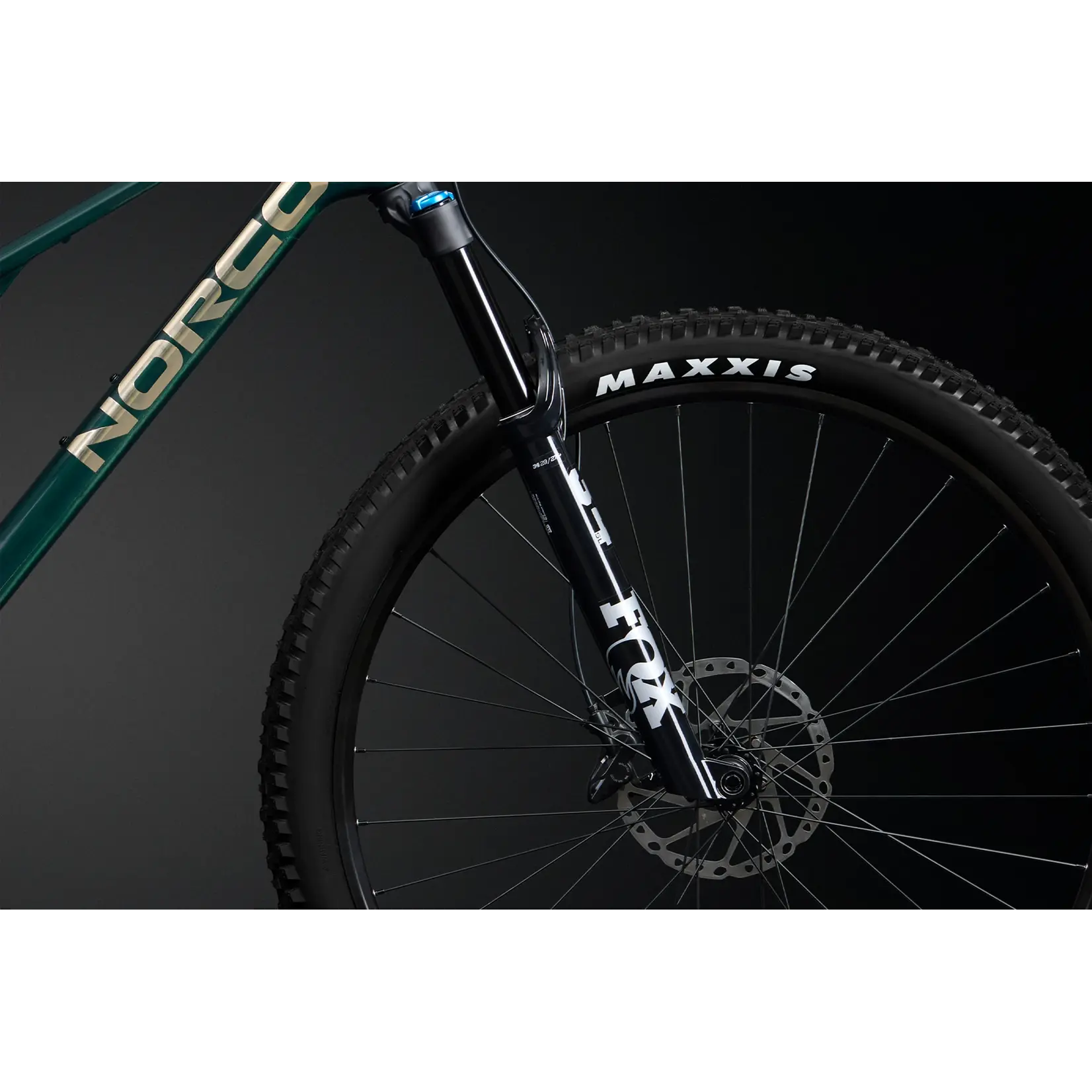

| FORK | Fox 34SL Performance Float, Grip, 130mm, 44mm offset |

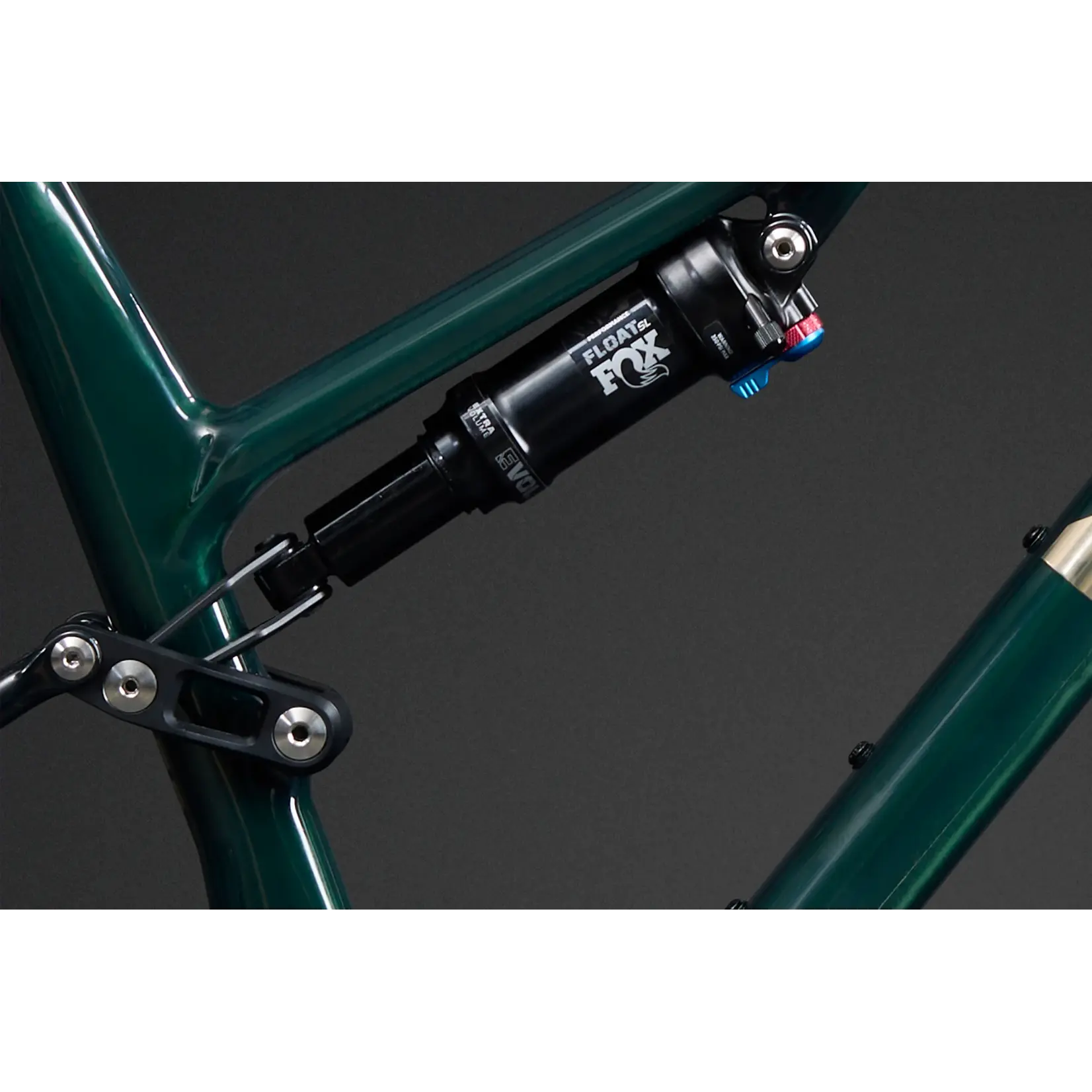

| REAR SHOCK | Fox Float SL Performance, 190x45mm, standard |
| REAR SHIFTER | Shimano Deore XT Di2 SW-M8250-IR, 12sp |

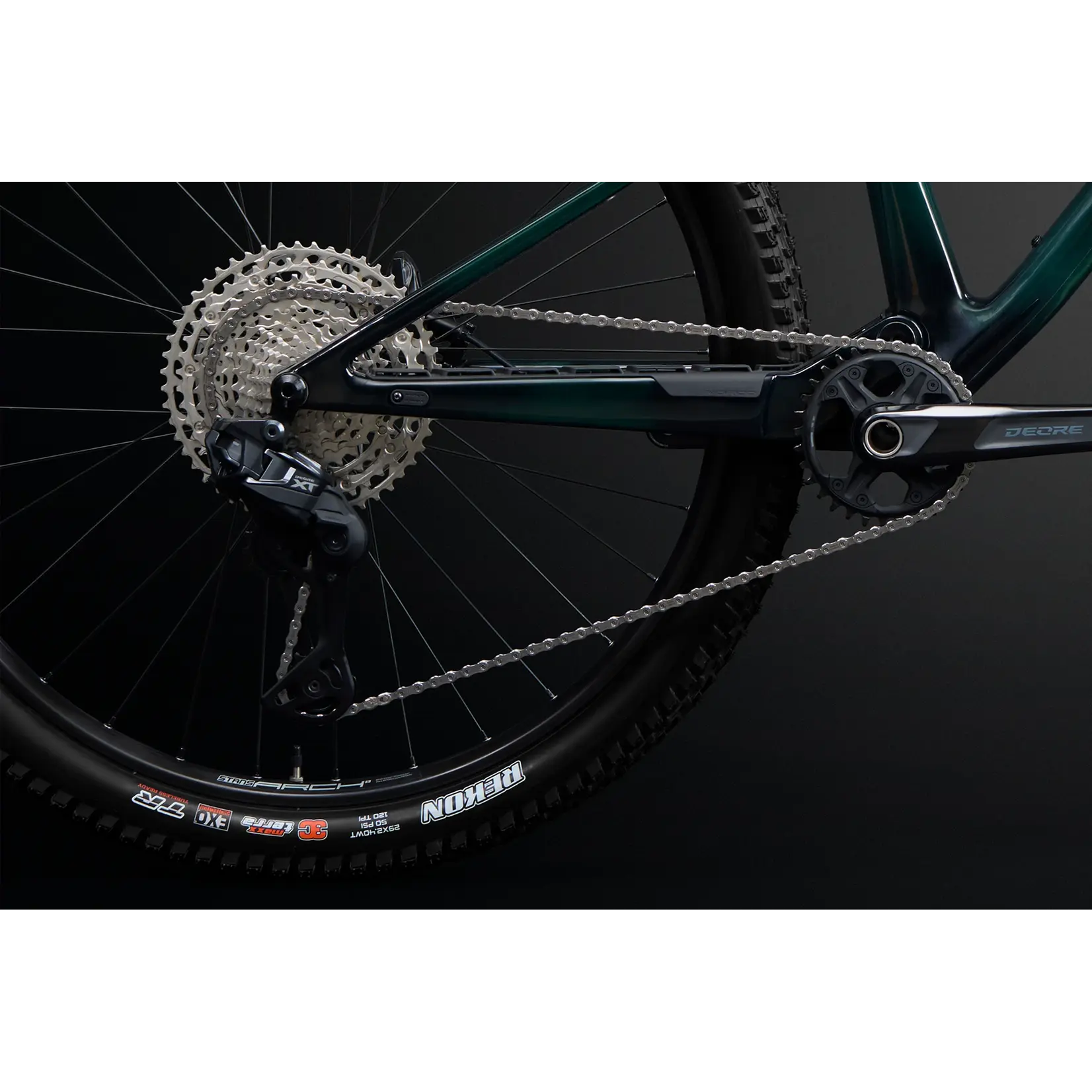

| REAR DERAILLEUR | Shimano Deore XT Di2 RD-M8250, 12sp, SGS |
| CRANKSET | Shimano Deore FC-M6120, 32T, CL55, 165mm (S1) 170mm (S2,S3) 175mm (S4,S5) |
| BOTTOM BRACKET | Shimano BB-MT501, BSA 73mm |
| CASSETTE | Shimano Deore CS-M6100-12, 10-51T, 12sp |
| CHAIN | Shimano Deore CN-M6100-12, 12sp |
| FRONT BRAKE | Shimano Deore MT520, 4-Piston, Metallic Pads |
| FRONT BRAKE ROTOR | Shimano SM-RT64, 180mm, C-lock |
| REAR BRAKE | Shimano Deore MT520, 4-Piston, Metallic Pads |
| REAR BRAKE ROTOR | Shimano SM-RT64, 180mm, C-lock |
| BRAKE LEVERS | Shimano Deore MT501 |

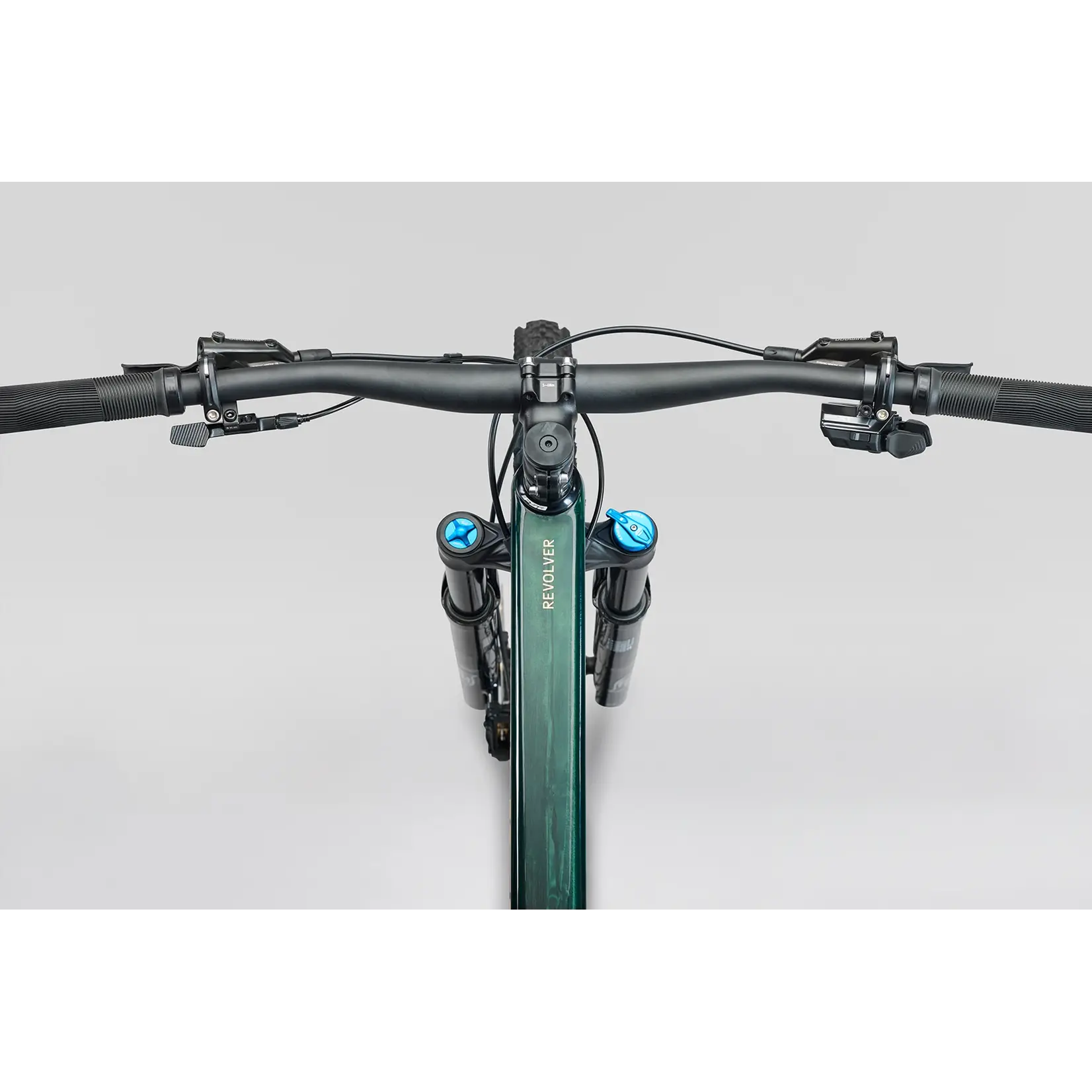

| HANDLEBAR | Norco 6061, 760 (S1,S2,S3) 780mm (S4,S5), 20mm rise |
| STEM | Norco 6061, 50mm, 35mm Clamp |
| SEATPOST | TranzX YSI36, 31.6mm, 120mm (S1, S2) -150mm (S3) -170mm (S4) - 200mm (S5) |
| HEADSET | FSA No 42/48ACB Integrated Headset, Tapered 1-1/8" - 1.5" |
| SADDLE | WTB Silverado Medium |
| GRIPS | WTB Wavelength |
| SEATPOST CLAMP | Norco bolted, 34.9mm ID |
| FRONT HUB | Shimano Deore HB-TC500, 15x110mm Boost, 32H, C-lock |
| REAR HUB | Shimano Deore FH-TC500, 12x148 Boost, Micro Spline, 32H, C-lock |
| RIMS | Stans Arch D, 28mm ID, 32H, 29" |
| FRONT TIRE | Maxxis Forekaster, 3C MaxxTerra EXO, 29x2.40" |
| REAR TIRE | Maxxis Rekon, 3C MaxxTerra EXO, 29x2.40" |
| REAR HUB SKEWER | 148mm x 12mm TA, L174, TL13, M12x1.4 |
| SPOKES/NIPPLES | Stainless steel |
| VALVES | Stans tubeless valves |
| SEALANT | Stans 250ml sealant |
| WEIGHT |
12.27 kg (27 lbs) |
| 1 | 2 | 3 | 4 | 5 | ||
|---|---|---|---|---|---|---|
| Wheel Size | 29" | 29" | 29" | 29" | 29" | |
| Travel (mm front/mm rear) |
130/120
|
|||||
| Reach | 418 | 443 | 468 | 493 | 518 | |
| Stack | 592 | 601 | 611 | 620 | 629 | |
| HTA | Head Tube Angle |
66
|
||||
| OS | Fork Offset |
44
|
||||
| ST | Seat Tube Length | 392 | 434 | 453 | 477 | 491 |
| STA | Effective Seat Tube Angle | 74.5 | 74.75 | 75 | 75.25 | 75.5 |
| RC | Rear Centre Length | 422 | 426 | 430 | 434 | 438 |
| BBDF/R | Bottom Bracket Drop (Front/Rear) |
32/32
|
||||
| BBH | Bottom Bracket Height |
342
|
||||
| HTT | Horizontal Top Tube | 581 | 606 | 631 | 655 | 680 |
| WB | Wheelbase | 1135 | 1168 | 1201 | 1234 | 1267 |
| SOH | Standover | 683 | 687 | 691 | 698 | 704 |
| HT | Head Tube Length | 90 | 100 | 110 | 120 | 130 |
| Trail |
118
|
|||||
| Recommended Seatpost Drop |
120
|
150 | 170 | 200 | ||
| Maximum Post Insertion |
220
|
250 | 270 | 300 | ||
| Stem Length |
50
|
|||||
| Crank Length | 165 |
170
|
175
|
|||
| Tire Size |
2.35" – 2.5"
|
|||||
| Water Bottle Compatible | 1 x 750 mL |
2 x 620mL or 1 x 750 mL
|
2 x 750 mL
|
|||
